Both the ailerons and both flaps are connected using Y connector and the single output is sent into the receiver.
Connection of electric plane without flaps.
Channel 1= Aileron
Channel 2= Elevator
Channel 3 = Throttle wire through ESC(for brushless motor)(this will only give the power input for receiver too)
Channel 4= Rudder
Connection of electric plane with flaps.
Channel 1= Aileron
Channel 2= Elevator
Channel 3 = Throttle wire through ESC(for brushless motor)
Channel 4= Rudder
Channel 5= Flaps.
Incase you have a gearing system then gear servo would be on Ch 5 and flaps on Ch 6
Connection of nitro plane.
Channel 1= Aileron
Channel 2= Elevator
Channel 3 = Throttle servo which controls the inflow of fuel into the engine.
Channel 4= Rudder
Channel 5= Flaps(if exists)
Battery would be connected to the battery channel provided on the receiver.
Battery would be connected to the battery channel provided on the receiver.

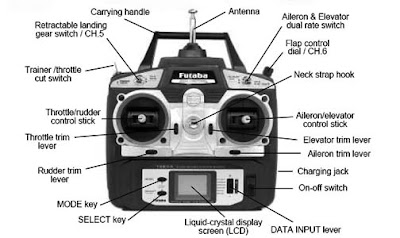

Transmitter Control(mode 2):
